H1600

H1600
Extra-High-Efficiency Imaging Spectrometer

The H1600 is H3D®'s highest efficiency, portable detector system. Detect, identify, and image even weak sources quickly and accurately with this user-friendly design.

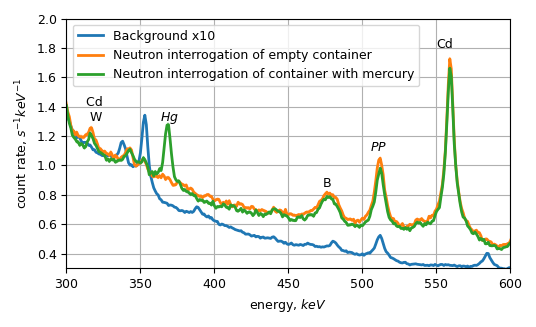

H1600 spectrum for active interrogation measurement Spectra recorded with the H1600 showing detection of mercury in a container after interrogation with neutrons.

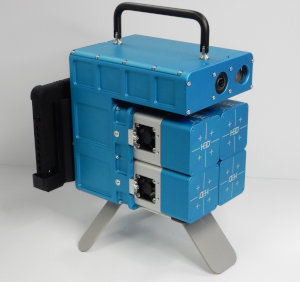

Side view of H1600

Features

  • Unsurpassed efficiency with pixelated CZT
  • Energy resolution competitive with cryogenically cooled detector
  • Fast, portable, and easy to use
  • Real-time spectroscopy, ID, and imaging
  • Air/water tight for easy decontamination
  • Ready to use in under 90 s

Applications

  • Decommissioning
  • Active Interrogation
  • Characterization
  • Monitoring

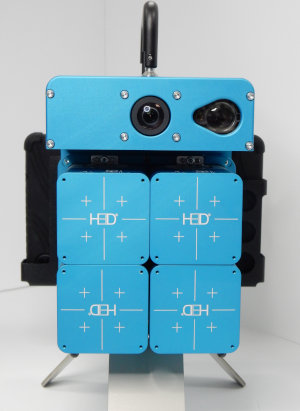

Front of H1600

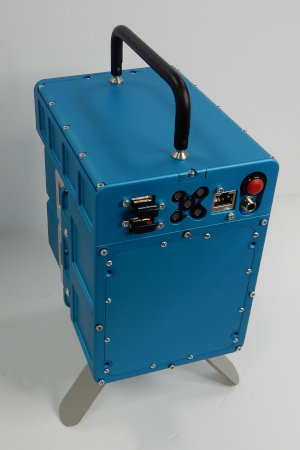

Back of H1600

Model
Resolution (% FWHM @ 662keV)
Spectrometer Range (keV)
Imaging Range (keV)
Collimator (" Tungsten)
CZT Volume (cm3)
Weight (lbs.)
Battery Life (hrs.)
IP Rating
Temperature Rating (°F)
Startup Time (minutes)
User Interface
Spec Sheet
H1600 Icon H1600 Icon H1600 Icon H1600 Icon
H1600 H1610 H1600+ H1610+
<1.1 <1.1 <0.8 <0.8
50 to 3000 50 to 3000 50 to 3000 50 to 3000
250 to 3000 50 to 3000 250 to 3000 50 to 3000
N/A N/A N/A N/A
>77 >77 >77 >77
11.7 ~12.7 11.7 ~12.7
>6 >6 >6 >6
IP67 IP67 IP67 IP67
-4 to 122 -4 to 122 -4 to 122 -4 to 122
<1.5 <1.5 <1.5 <1.5
Tablet Tablet Tablet Tablet


More Information

Contact us for more information, a demo, or quotation.




H1600 and related systems are patent protected by: U.S. Pat No. 7,411,197 and U.S. Pat No. 7,692,155 under license from the University of Michigan, and U.S. Pat No. 10,032,264.
